Titanium Equipment's

Engineering & Electrochemical Equipment's Manufacture

Electrode assembly consist of MMO coated anode and cathode for HOCl generation

Electrode assembly consist of MMO coated anode and cathode for HOCl generation



MMO Coated Mesh anodes for Hypochlorous Generation.

MMO Coated Mesh anodes for Hypochlorous Generation.

Tiaano supplying plate, mesh and custom made cathode and anode for Hypochlorous Generation. Also we are supplying domestic type HOCl generator with simple USB connection of 12V.

HYPOCHLOROUS ACID DISINFECTANT SOLUTION GENERATING PLANT

Hypochlorous acid (HOCl) solutions were evaluated to fight against the Coronavirus,

HOCL plays an important role during this pandemic time which is advisable to use in tunnel spray. It is an evidence, In April 2020, the Israelien university researchers said they developed a way to make strong, environmentally friendly disinfectants to kill bacteria and viruses *by using tap water (below 100 TDS), which is electrified to produce hypochlorous acid (Food grade disinfectant (hypochlorous acid solution) at defined levels of acidity*.  The method was developed and patented by Dr. Eran Avraham, Dr. Izaak Cohen and Prof. Doron Aurbach, head of the electrochemistry group of the Department of Chemistry and Institute of Nanotechnology and Advanced Materials at Bar-Ilan University.



The advantage of the disinfectant over others, said the researcher Eran Avraham, is that *hypochlorous acid*, unlike other commercial disinfectants like bleach, is not harmful to human skin or food.  *The tunnel is the first implementation of the technology, said Avraham* at the demonstration on Tuesday. “It will help reduce the chances for infection,” he said.

The details available in the link https://www.timesofisrael.com/israeli-disinfectant-tunnel-may-lead-way-to-safer-public-events-during-pandemic/

View the video https://www.thermwindows.com/wp-content/uploads/2020/05/Disinfection-Channel.mp4

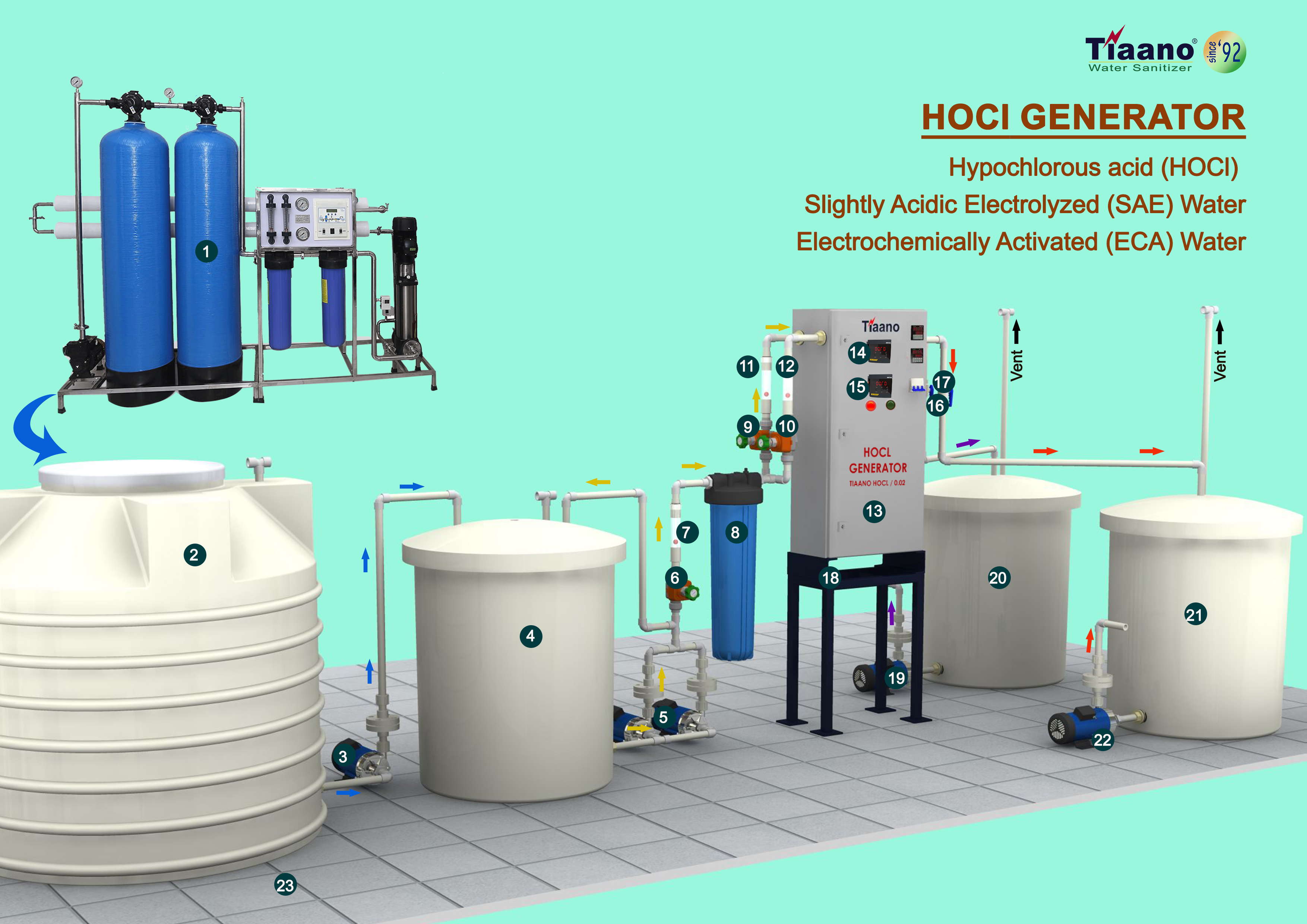

Hypochlorous plant generating (Slightly Acitic Electrolyzed Water)

Sodium hypochlorous plant generating (Slightly Acitic Electrolyzed Water)

We, Tiaano Design, manufacturing hypochlorous plant which is generating anolyte (HOCL) and Catholyte (NaOCL)using RO water and Pure industrial salt.

The ion exchange membrane which we used in the generator is made from a polymer which only allows positive ions to pass through from anolyte compartment and catholyte. That means that the only the sodium ions from the sodium chloride solution can pass through the membrane, and not the chloride ions. The advantage of this is that the sodium hydroxide solution being formed in the right-hand compartment never gets contaminated with any sodium chloride solution.

Sodium hydroxide (NaOH), also known as caustic soda or lye, is a highly versatile substance used in a variety of manufacturing processes. Sodium hydroxide is a co-product of chlorine production



The benefits of the HOCL (hypochlorous acid) is enormous:



Hypochlorous acid, unlike chlorine bleach, is 100% safe and non-irritant. If it gets on your skin or in your eyes, it will not burn. Even if it were accidentally ingested, it is completely harmless. Yet, it is 70-80 times more efficient at killing microbial pathogens than chlorine bleach.

Where can it be used?



In the home, hypochlorous acid is useful anywhere you need a sanitizer but don't feel comfortable using a toxic chemical. A perfect example is in the kitchen. Instead of rinsing leafy greens with water, use hypochlorous acid. Or for pesonal items such as toothbrushes or razors, hypochlorous acid is safe. Want to sanitize laundry without damaging or discoloring clothing, hypochlorous acid is the best solution and hypochlorous Acid as a Potential Wound Care Agent

1.    HOCl is the scientific formula for hypochlorous acid, a weak acid similar to that of a mild citrus juice.

2.     HOCl is made naturally by white blood cells in all mammals for healing and protection.

3.     HOCl is a powerful oxidant that is effective against invading bacteria, fungi, and viruses.

4.    Generating HOCl by running electricity through a solution of saltwater was discovered in 1970s.

5.    HOCl is now used in healthcare, food safety, water treatment, and general sanitation.

6.    Hypochlorous acid can be used at high concentrations (60 ppm) for food sanitation without requiring a post-rinse.

7.    Sanitizers normally having 70% Alcohol which is harm for the lungs. Whereas HOCL is not harm.



Why is HOCl more efficient at killing pathogens than NaOCL



Hypochlorous Acid (HOCl) vs. Sodium Hypochlorite (Chlorine Bleach)



Hypochlorite ion carries a negative electrical charge, while hypochlorous acid carries no electrical charge. The hypochlorous acid moves quickly, able to oxidize the bacteria in a matter of seconds, while the hypochlorite ion might take up to a half hour to do the same. Germ surfaces carry a negative electrical charge which results in a repulsion of the negatively charged hypochlorite ion to the area of the germ surfaces, making hypochlorite ion less effective at killing germs. The ratio of the two compounds is determined by the relative acidity (pH) of the water. Water treatment specialists can adjust the pH level to make hypochlorous acid more dominate, as it is more efficient at killing bacteria. The hypochlorous acid's lack of electrical charge allows it to more efficiently penetrate the protective barriers surrounding germs.

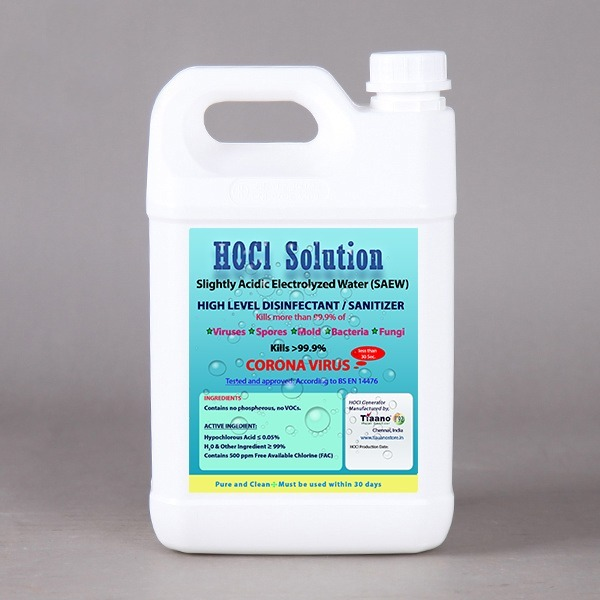

Tiaano supplied Hypochlorous generator full skid with fully automated and manual operated systems as per the customer required capacities with RO and without RO , as well as HOCL solution ( Slightly Acitic Electrolyzed Water) in 5 liter cans.



 FEEL FREE TO CALL US:

Ph: +91 9176883999 | +91 9444 56 9900

Web : www.tianode.com   E-mail :dsa@tiaano.com

Profile: http://www.tianode.com/images/Profile-TiAnode.pdf

Ti     Anode    Fabricators     Private     Limited.
# - 48,  Noothanchary,  Madambakkam, Chennai - 126, INDIA.

GSTIN: 33AABCT9790N1ZN PAN: AABCT 9790N AADHAR: 7522 0783 3933







Slightly Acitic Electrolized (SAE) Water

Hypochlorous acid (HOCl) solutions were evaluated to fight against the Coronavirus, low pathogenic avian influenza virus (AIV), H7N1. HOCl solutions containing 50, 100 and 200 ppm chlorine (pH 6) or their sprayed solutions (harvested in dishes placed at 1 or 30 cm distance between the spray nozzle and dish) were mixed with the virus with or without organic materials (5% fetal bovine serum: FBS). Under plain diluent conditions (without FBS), harvested solutions of HOCl after spraying could decrease the AIV titer by more than 1,000 times.

Tiaano supplying HOCL generators as we ll as HOCL solution with 500 ppm concentration to our clients in India and all over the world.
